6. Cover assembly
Parts
Tools
Step 1: Splash guard parts
-

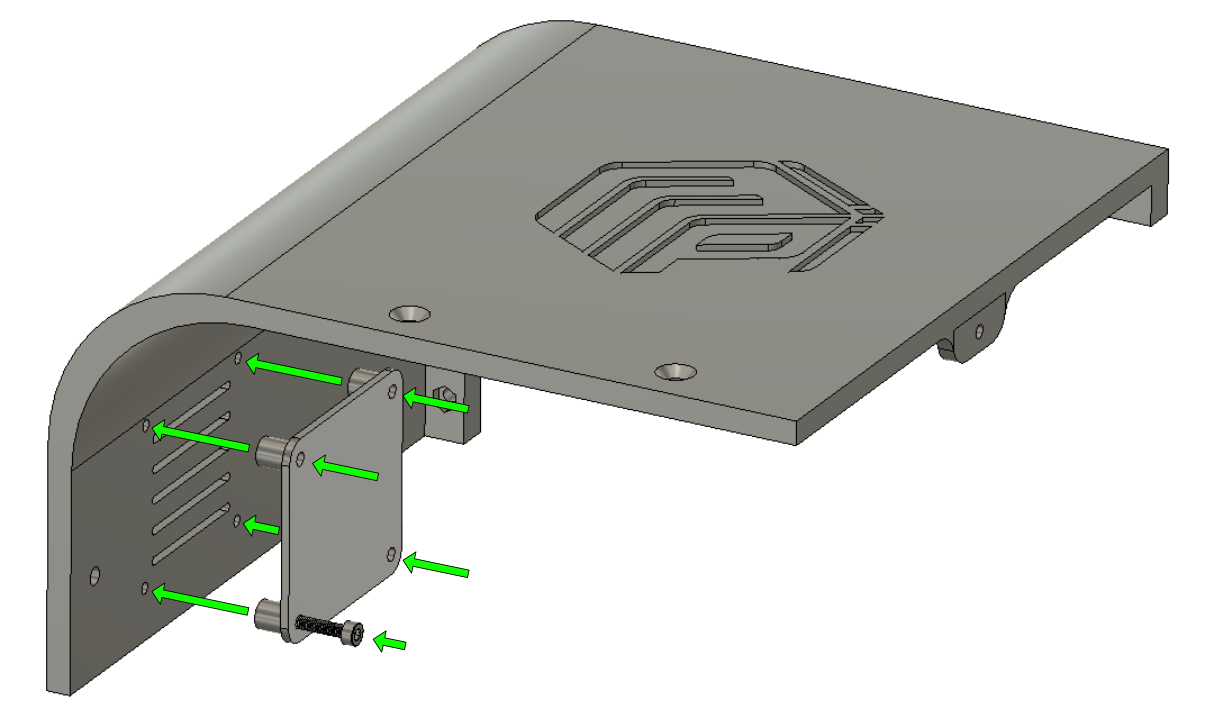

Use 2 Splash Guard.stl with M3x12 (x4) for each parts. Use a 2.5mm Allen key to screw it directly into the holes of both cover parts : Cover_Logo.stl & Cover_Empty.stl.
Step 2: Full cover
-

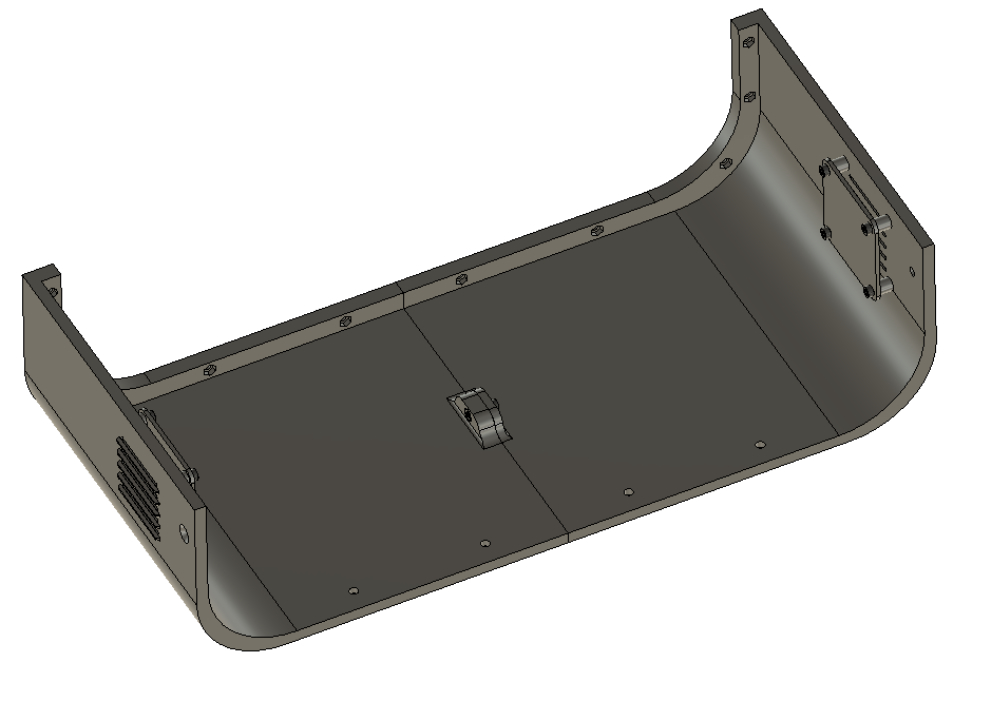

Screw the two parts Cover_Logo.stl & Cover_Empty.stl with a M3x12 and a M3 Nut (x1).
-

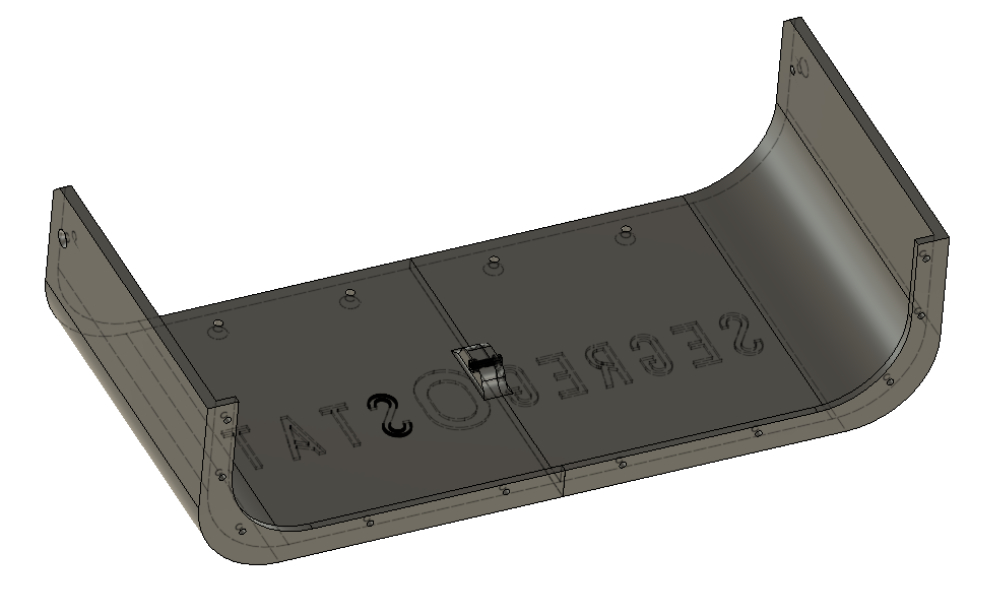

Repeat the same process with the second half of the Cover with the Cover_Segreg.stl & Cover_Ostat.stl parts.
-

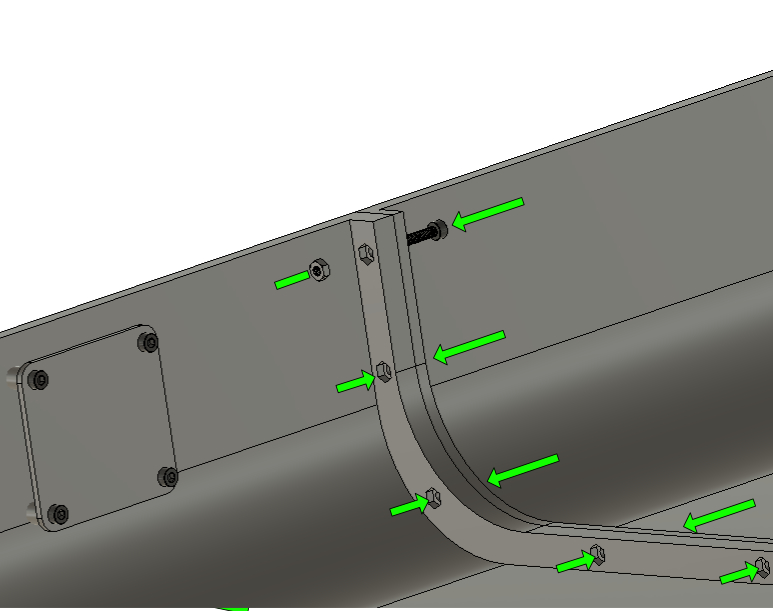

Now we need to assemble the two halves using M3x12 (x10) and M3 Nut (x10).
-

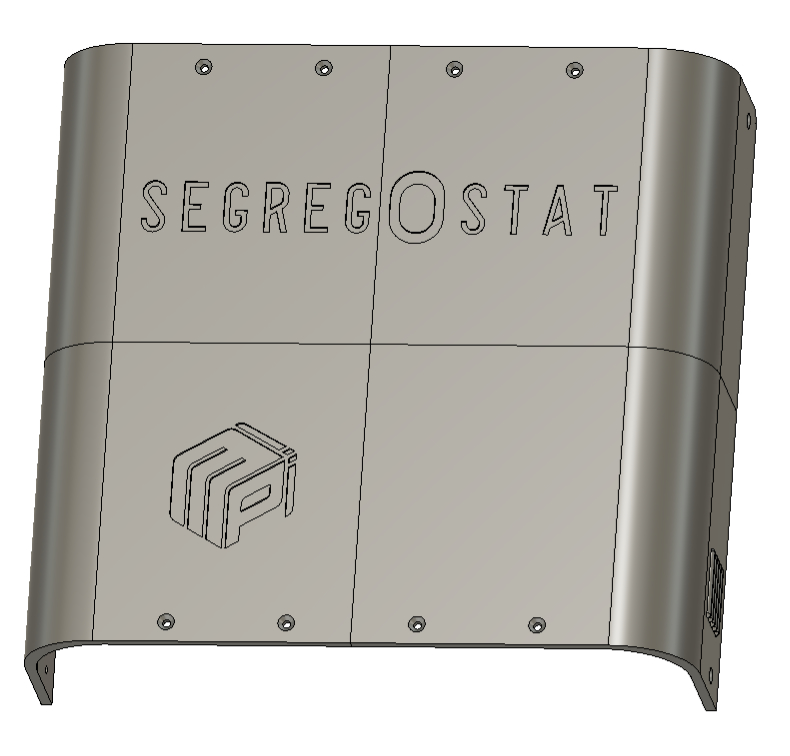

The full cover is done:
For sealing, it is possible to glue the parts with epoxy glue.
