3. Front panel mounting
Parts
- 1 Wago Support
- 2 M3x6
- 1 Wago
- 3 Head pump / 13Rpm
- 10 M4x30
- 2 Head pump / 290Rpm
Step 1: Fix wago support

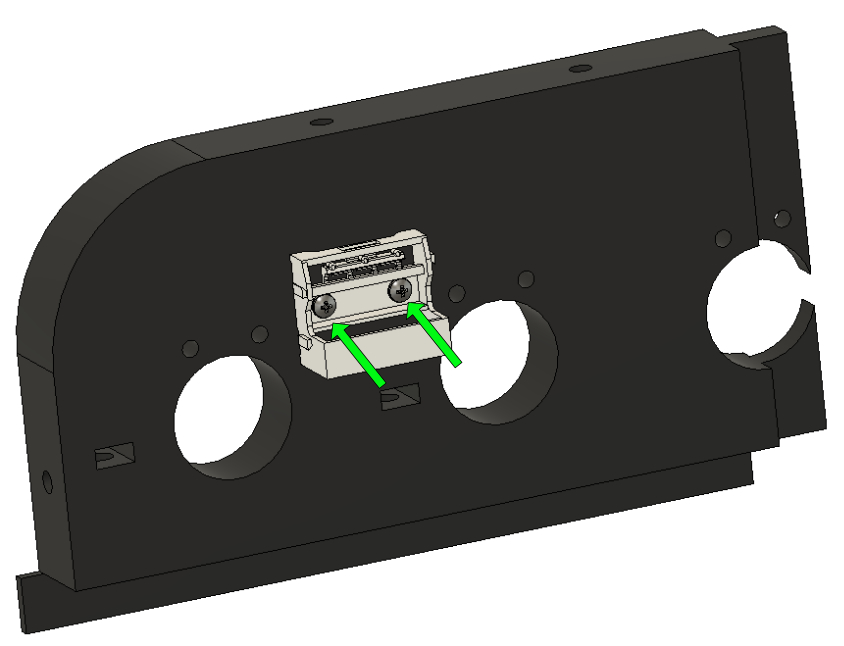

- Install the Wago Support on the 3D printed part FrontL.stl using M3x6 (x2) and screwing directly into the plastic.

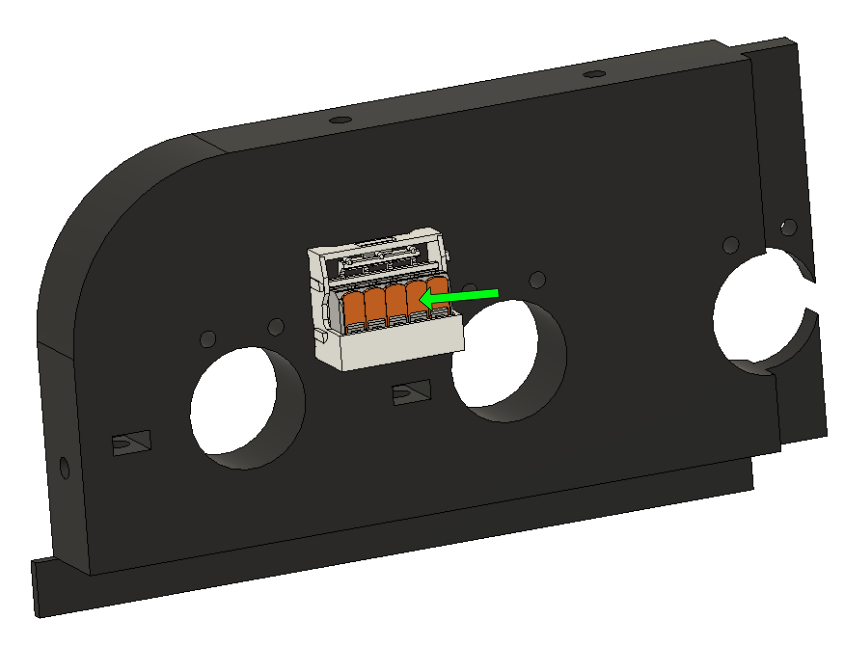

- Put a Wago inside the support.
Step 2: Main part

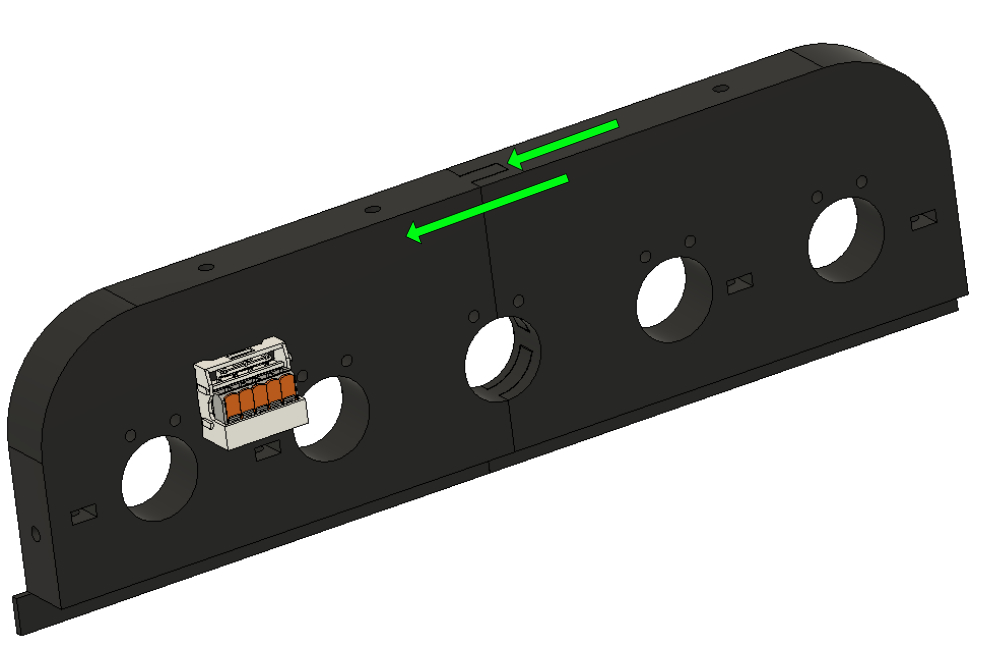

- Put the two parts together to form the main part with the 3D printed parts FrontR.stl & FrontL.stl

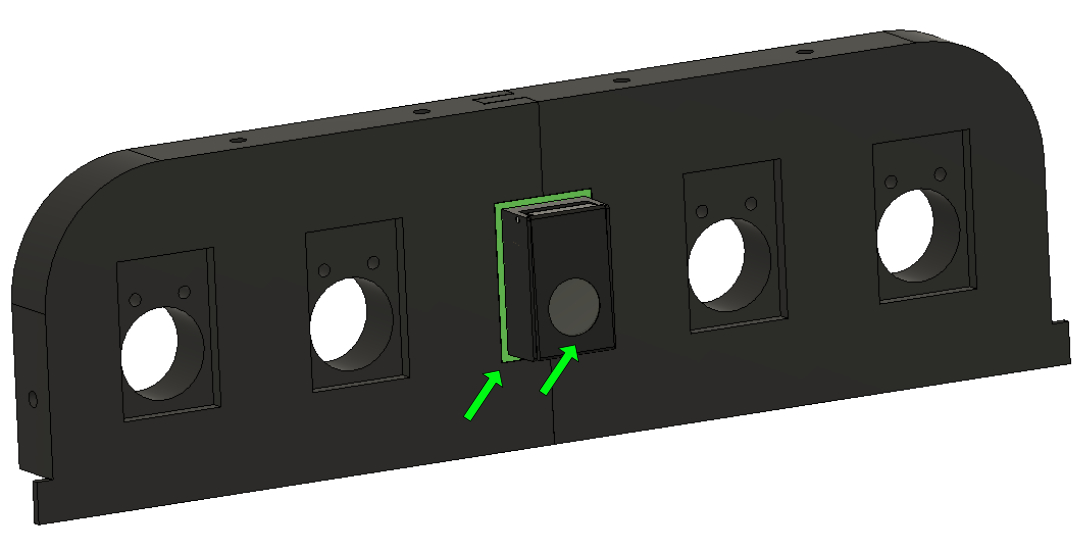

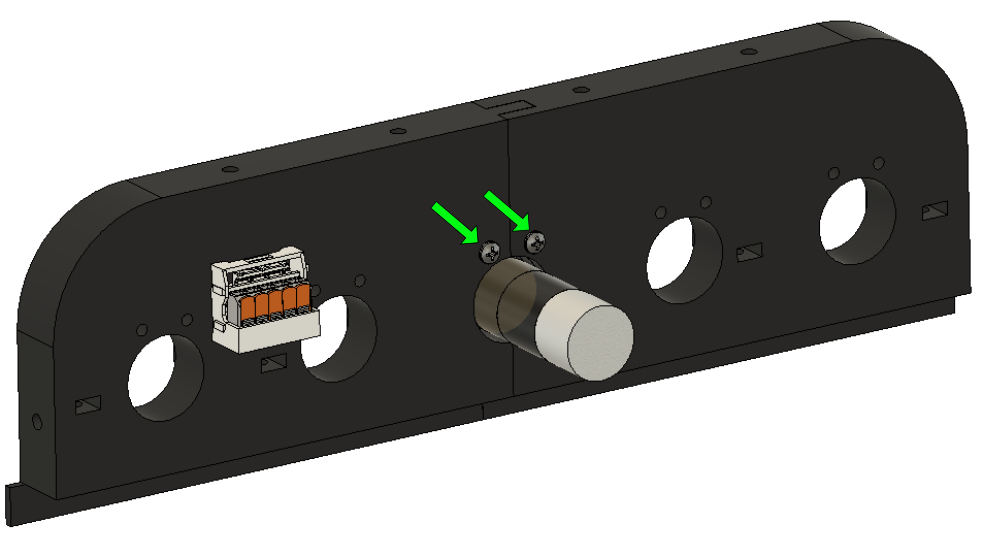

- Add the centre Anti-vibrator.stl (3D printed with Flex Filament) and screw the first Head pump / 13Rpm from the back (see second picture) with M4x30 (x2) in this way the two 3d printed parts will hold together.
Step 3: Add all pumps

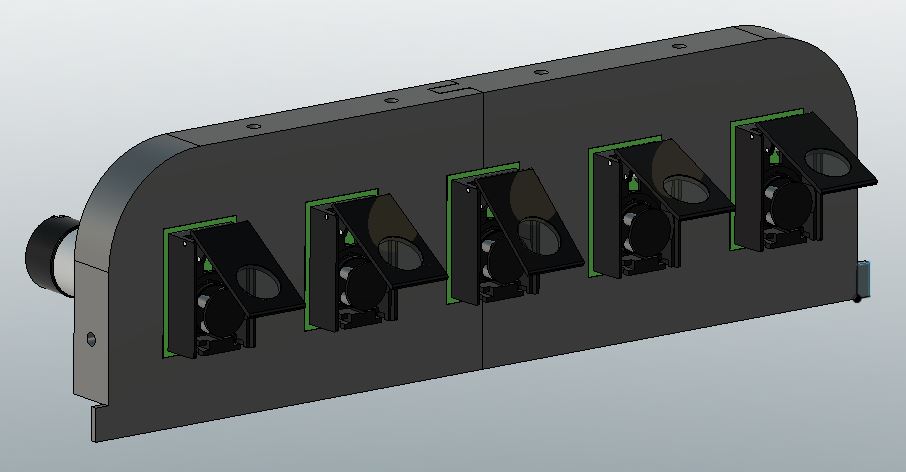

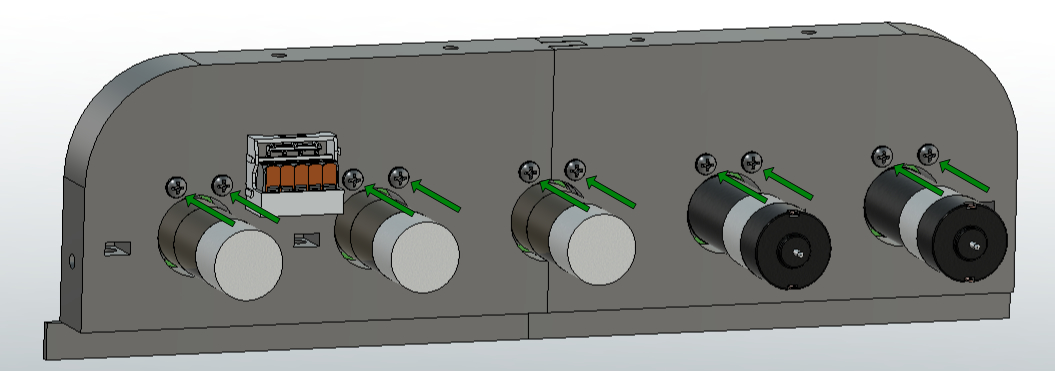

- Fix all the pump (Head pump / 13Rpm & Head pump / 290Rpm) with the anti-vibrator.stl (printed with Flex filament) using M4x30 (x8).
